Full 3D mold design in accordance with customer mold manufacturing specifications

  • Mold Manufacturing Specifications

  • FULL 3D Mold Design

  • 3D Mold Design

Mold Flow Analysis (CAE)

Gate design for optimal part molding, Gate balance analysis, Injection pressure analysis, Injection machine capability verification, Gas trap prediction, Cooling efficiency analysis, Cycle time optimization, Short-shot and filling risk pre-validation

  • Deformation and molding behavior verification through computer simulation
  • Improved productivity and assured product quality

  • Injection Pressure

  • Deformation Reverse Engineering

  • Molding Balance

Optimization of gate design, fill balance, injection pressure, deformation control, and cooling temperature via mold flow analysis

Cooling Fan Mold Technology

  • Function : Located behind the radiator to enhance cooling performance and prevent overheating
  • Mold Technology : Mold flow analysis, mold pressure sensors, mold coating, weight balance analysis at the design stage, polishing-free machining, and weight balance measurement (※ Polishing-free machining: Precision finishing achieved through high-speed machining without manual polishing)
  • Issuance of Mold Manufacturing Standards

  • Product Geometry

Fan Mold Technology (1/4) / Mold Flow Analysis

Computer Simulation
  • Molding Balance
  • Cooling Weak Areas
  • Weld Line
  • Deformation Verification

  • Molding Balance

  • Cooling Weak Areas

  • Weld Line

  • Deformation Verification

Fan Mold Technology (2/4) / Pressure Sensors & Coating

Pressure & Temperature Sensors: Measurement of internal mold pressure and temperature to enhance stable production performance
Mold Surface Coating (Putra Nano Coating – TiAlN)
  • 30% Improvement in Mold Service Life
  • 500,000 shots (before coating) 700,000 shots (after coating)

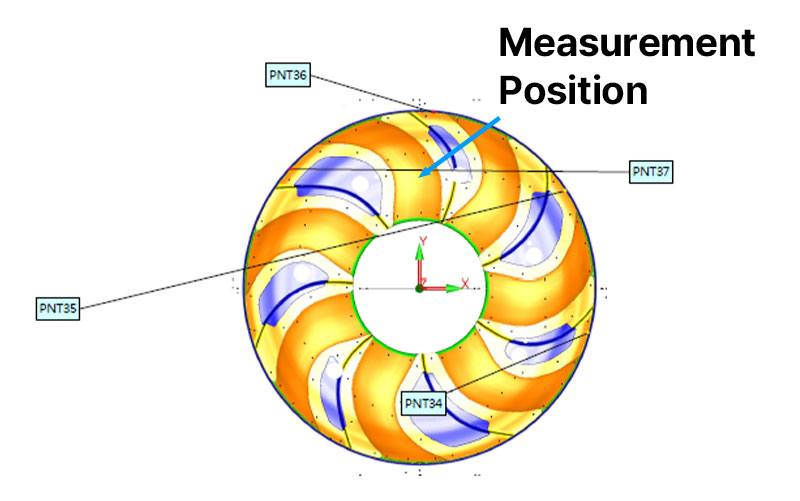

Fan Mold Technology (3/4) / Polishing-Free Machining

  • Machining accuracy verified through 3D measurement achieving complete polishing-free fitting
  • Objective Minimum Maximum Difference
    20㎛ -5㎛ 14㎛ 19㎛
Verification Study Results of Uneven Cooling Fan Weight Balance Distribution
  • Analysis Results
    • The left-side A–B area shows values approximately 14–17 g lower than the average.
    • The weight in the A–B area needs to be increased.
    • Adding weight to the blade area affects runout values; therefore, thickness adjustment is required in the rim area.

Fan Mold Technology (4/4) / Weight Balance Analysis

Fan Balance: Measurement and correction of unbalance by evaluating the center of mass of the rotating component
Weight Balance Analysis Sheet
